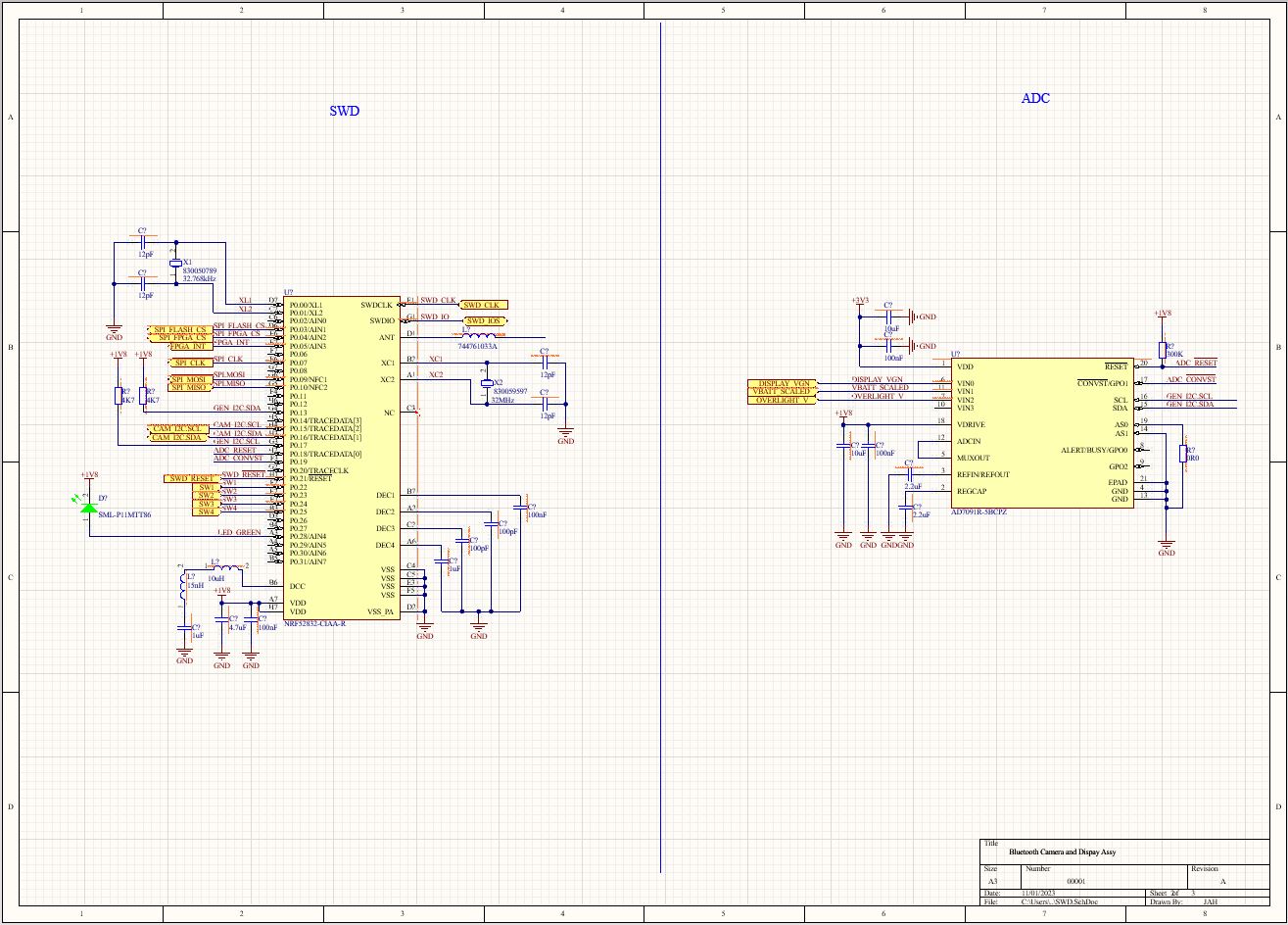

Schematic Design

Whether you have a concept of the hardware requirements or a detailed specification, we can use this information to provide electronics hardware schematic drawings, either in preparation for PCB design, or for general hardware assemblies.

From simple wiring looms to multi-page hardware designs, we provide highly professional schematic drawings.

With many years of experience in hardware design, we understand the importance of superior detail during the schematic capture phase. Using a multi-level review process to ensure every minor detail is perfected to give you confidence in the design.

We want to ensure that your designed can perform to its greatest ability, along with being cost sensitive and with short lead times for manufacture, so component selection is carefully considered for performance, cost and market availability (including obsolescence management).

PCB Design

If you require PCB design of your design, we take your schematic designs, netlist and mechanical information to take your design another step closer to a product in your hand.

PCB design is a critical stage in electronic hardware design, it requires experience, a broad knowledge of electronics, and a keen eye for detail, and we have just that.

We provide a range of services and design types, including;

Along with providing the PCB design data for manufacture, we also provide a full Design For Manufacture (DFM) review and report stage, which ensures the manufacturing process of the PCB has been considered for cost, reliability and reduced manufacture times.

Tools

Altium Designer is the primary tool used for all aspects of design. We are are able to abstract data from other platforms, to be used within Altium

Schematic prints and Bill of Materials can be created using a generic template, or one provided by the customer.

PCB Design files can be exported in a range of formats, including all major gerber formats (.ger, RS-274-X and Gerber X2), netlist generation, test points, design rules, pick and place, PCB design reports, DFM report, and 3D models (various). All exported data will be prepared ready for manufacture.

We can accept a range of data to ensure your design meets your requirements, including space envelope drawings.
